REACH STACKER

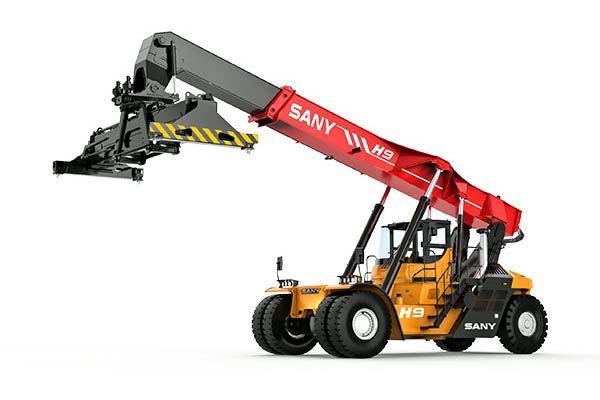

SRSC45H9 Reachstacker

Gross Weight: 71t;Wheelbase: 6000mm;Rated Load: 45t

Tel: +86 13382381018

Email: guxubo666@163.com

Reliability:
Benefiting from over 10 years of technical expertise and proven by 3,900 units in the market, our product delivers trusted quality. Equipped with an elevated air intake pipe and pre-filter, it performs reliably in harsh environments. The full LED lighting system ensures long service life, with up to 20,000 hours of operation without failure.

Efficiency:
Featuring faster lifting speeds, higher productivity, and more responsive controls, the intelligent transmission enables smooth shifting and energy-saving operation. Overall efficiency is increased by 10%.

Energy Saving:
With energy recovery technology and an H-type single-tube spreader that is lighter yet stronger, the system achieves significant fuel savings—enough to offset the cost of a new vehicle in one year.


  • Engine Model:VOLVO
  • Rated Power:265kW/2100rpm
  • Max. Torque/Speed:1780Nm/1260rpm
  • Emission Standard:Stage III
  • Transmission Model:DANA TE30
  • Spread Rotation Angle:+105°/-195°
  • Spread Side Shift:±800mm
  • Spread Compatibility:20
  • Tire Size:18.00-25 40PR
  • Overall Length:11340mm
  • Overall Height:4770mm
  • Stacking Layers:5 (9
  • Max. Hoisting Speed:250mm/s, Unladen: 420mm/s
  • Min. Ground Clearance:350mm
  • Max. Lowering Speed:Laden: 300mm/s, Unladen: 360mm/s
  • Max. Travel Speed:Laden: 21km/h, Unladen: 25km/h
  • Gradeability:Laden: 32%, Unladen: 39%
  • Max. Hoisting Height:15100mm
  • Boom Tilt Angle:0~60°
