REACH STACKER

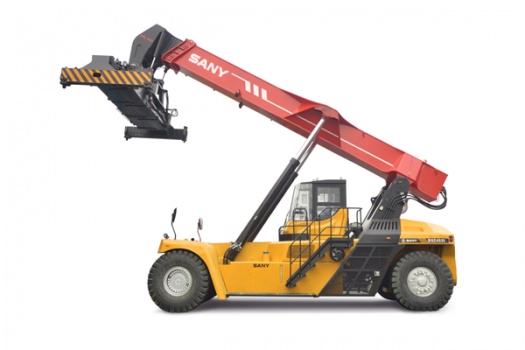

SRSC4535H1 Reachstacker

Total Weight: 76.5tWheelbase: 6500mmRated Load: 45t

Tel: +86 13382381018

Email: guxubo666@163.com

  • World-renowned Engines
    Utilizes globally recognized engines such as VOLVO and CUMMINS, ensuring dependable quality and powerful performance.

  • Sino-German Collaborative Design
    Designed through Sino-German cooperation, employing a fully digital prototype system. The structural integrity is validated via finite element analysis, kinematics and dynamics simulations, and rigorous testing for fatigue and vibration.

  • World-Leading Safety Features
    Incorporates advanced safety technologies including dynamic anti-tip protection, spreader rotation anti-collision, automatic reverse braking, full-machine fire prevention, and flexible damping for solid tires, ensuring world-class safety performance.

  • Precise and Comfortable Operation
    A comfortable operating environment features a centralized control lever with excellent micro-motion capability, enabling effortless millimeter-level precision control.

  • Proportional Control for Attachments
    All attachment functions utilize proportional control, providing an intuitive and seamless human-machine interaction experience.

  • High Efficiency and Versatility
    The machine is equipped with vertical boom lifting technology, bulk container handling capabilities, and multi-function synchronization, resulting in fast operation and high productivity.


  • Engine Model:VOLVO TAD1151
  • Rated Power/Speed:265/2100kW/rpm
  • Max. Torque/Speed:1780/1260Nm/rpm
  • Emission Standard:Stage III
  • Transmission Model:DANA 15.5HR36000
  • Drive Axle Model:KESSLER D102 PL341
  • Spread Model:SDJ450F
  • Side-shift Distance:±800mm
  • Rotation Angle:+105/-195 deg
  • Self Weight:7.8t
  • Suitable for:ISO 20
  • Max. Hoisting Height:15100mm
  • Boom Tilt Angle:0~58deg
  • Tires:18.00-33 36PR
  • Max. Hoisting Speed (No-load/Full-load):420/250mm/s
  • Max. Lowering Speed:360/300mm/s
  • Max. Travel Speed (No-load/Full-load):25/18km/h
  • Gradeability (No-load/Full-load):38/24%
  • Cab Noise:≤72dB
  • Hydraulic System Working Pressure:260bar
  • Stacking Layers:5 (9
  • Overall Length L:11845mm
  • Overall Height H:4870mm
  • Min. Ground Clearance H1:350mm
  • Overall Width W:6053-12185mm
  • Front Wheel Track T1:3033mm
  • Rear Wheel Track T2:2790mm
  • Min. Turning Radius R:8800mm
  • 20' Container Aisle Width A1:12000mm
  • 40' Container Aisle Width A2:13600mm
