REACH STACKER

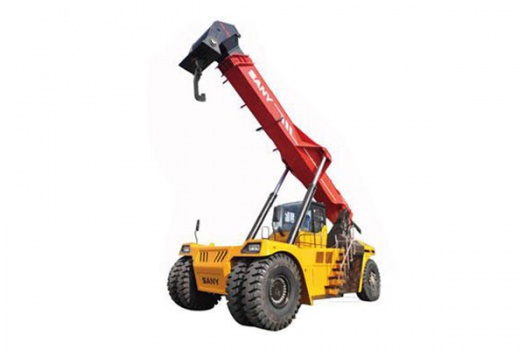

SRST50H1-H Reachstacker

Total Weight: 65.5t;Wheelbase: 6000mm;Rated Load: 45t

Tel: +86 13382381018

Email: guxubo666@163.com

Network-Powered High-Pressure Spray Automatic Fire Suppression System

  • Capable of fire alarm, flame retardation, and extinguishing functions, delivering stable and reliable fire protection performance.

World-Class Engine Selection

  • Equipped with internationally renowned engines (e.g., VOLVO, CUMMINS), ensuring dependable quality and powerful performance.

Optimized Power Performance

  • Integrated power-matching and control technologies significantly enhance dynamic performance.

Enhanced Durability and Comfort

  • Combined with flexible damping technology, shock loads are substantially reduced, improving operational comfort and structural component longevity.

Customized Tire Solutions

  • Optional solid tire flexible damping system available to meet customer needs, enhancing operational safety and reliability while reducing tire maintenance costs.

Intelligent Obstacle Detection

  • Utilizes laser scanning and image recognition technologies to accurately detect personnel and obstacles in the vehicle’s path, enabling automatic braking to prevent accidents. Offers high intelligence and proactive safety.


  • Engine Model:VOLVO TAD1151
  • Rated Power/Speed:265/2100 kW/rpm
  • Max. Torque/Speed:1780/1260 Nm/rpm
  • Emission Standard:Stage III
  • Transmission Model:DANA 15.5HR36000
  • Drive Axle Model:KESSLER D102 PL341
  • Spread Model:SDJ400G
  • Rotation Angle:360°
  • Self Weight:1.2 t
  • Application:Tower Sections (Wind Turbine)
  • Max. Hoisting Height:15100 mm
  • Boom Tilt Range:0–60°
  • Tires:18.00-25 40PR
  • Max. Hoisting Speed (Unloaded/Loaded):420/250 mm/s
  • Max. Lowering Speed (Unloaded/Loaded):360/300 mm/s
  • Max. Travel Speed (Unloaded/Loaded):25/21 km/h
  • Gradeability (Unloaded/Loaded):39/32%
  • Cab Noise:≤72 dB
  • Hydraulic System Pressure:260 bar
  • Overall Length (L):10580 mm
  • Overall Height (H):4770 mm
  • Min. Ground Clearance (H1):350 mm
  • Overall Width (W):4188 mm
  • Front Wheel Track (T1):3033 mm
  • Rear Wheel Track (T2)::2790 mm
  • Min. Turning Radius (R):8000 mm
  • 20ft Container Aisle Width (A1):11300 mm
  • 40ft Container Aisle Width (A2):13600 mm
